dg5W

Still compact. Twice the power.
Now supercharged by deep gadget's liquid cooling.

Where compact design meets powerful cooling. The all-new deep gadget liquid cooling system is so efficient that fits twice the AI processors in the same space—while staying whisper-quiet. Designed with a versatile form factor and full support for the latest architectures, it's built to excel anywhere, from data centers to office spaces.

78cm44.5cm

Compact 2/3-size design

Expandable with up to 3 additional GPUS

Based on comparison with other GPU servers

PERFORMANCE

Twice the performance.
The latest deep gadget liquid cooling system keeps the dg5W cool, even with 7 high-heat AI chips—including the NVIDIA H200NVL and RTX 5090. And yet, it's quiet enough to sit right next to. Now, even ultra-high-performance workloads run seamlessly in your office.

Up to

7

Number of AI processors
that can be installed

Up to

27.7PFLOPS

AI performance
(Based on 7 H100 NVL, FP8)

Up to

900GB/s

GPU-to-GPU communication speed
(With H200 NVL NVLink bridge)

Up to

846GB

HBM3E GPU memory

Up to

1,821B

Parameter model capacity
About 10x the size of GPT-3

Up to

2.29x

Performance improvement
Compared to dg4W maximum performance

RACK MOUNT

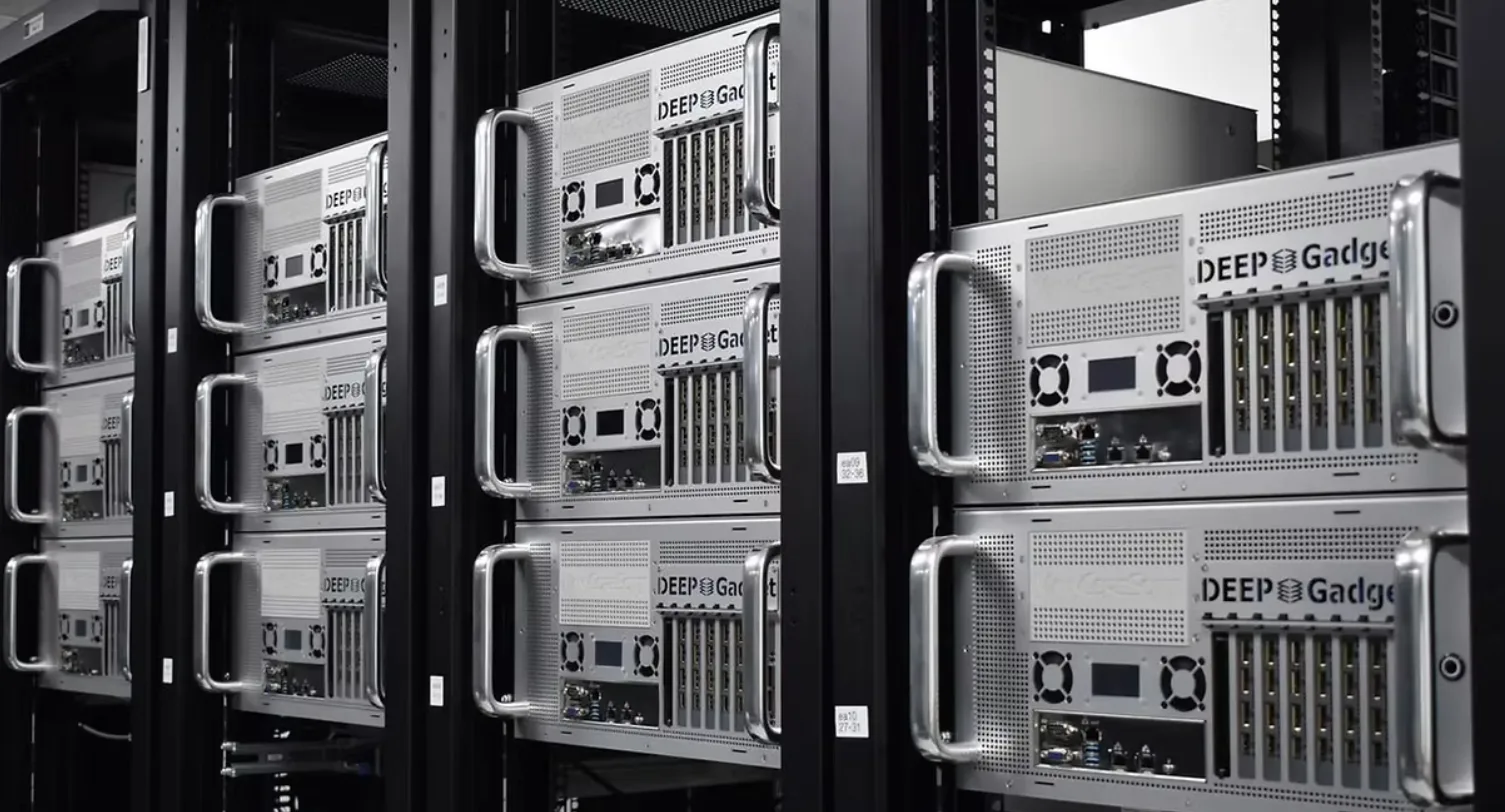

Versatile from data center to office. The dg5W fits effortlessly into a rack, delivering the same powerful performance with whisper-quiet efficiency. Its optimized airflow enhances cooling while eliminating the need for extra equipment—cutting data center costs by up to 50%. Instead of the dual-wheel casters found in the tower model, the rack mount features precision-engineered brackets for secure, tool-free installation.

deep gadget's exclusive
liquid cooling technology.

deep gadget isn't just another liquid cooling solution. It's a next-generation system, precision-engineered
with expertise from Seoul National University's supercomputer research, designed by a 20-year Toyota Motor Corporation veteran, and refined through a decade of R&D.

Management-free built-in Liquid Cooling System

A fully sealed inner liquid conduit ensures the world's highest level of stability.
Unmatched in-house cooling plate design.
deep gadget®'s effecient cooling system distinct from others

dg5W

Cooling System

General custom

Cooling System

dg4r도표Maintaining low temperatures even during high-specification tasks, deep gadget® cools each component independently. This ensures optimal performance of each part by preventing heat buildup, unlike conventional liquid cooling systems.

Equipped with world-class Dual-Pump cooling systems to prevent heat-induced GPU throttling and extend life

deep gadgetAlways 100% performance
그래프
General GPU serverThrottling(lowering performance)

deep gadget

GPU performance does not deteriorate as the temperature remains around 60℃, even if the GPU is used at its maximum.

General GPU server

The GPU operating clock automatically drops and performance decreases as the GPU temperature rises to 80~90℃.

World-leading adaptive Liquid Cooling System

deep gadget adaptively controls the Liquid Cooling System by constantly checking the system's usage rate and temperature.
If your system is doing light work, it will run quieter.
dg4액체냉각시스템

CUTTING-EDGE ARCHITECTURE

Powering your work with the latest technology. deep gadget's unrivaled liquid cooling efficiency meets cutting-edge architecture. Designed for more than just AI training, it delivers flawless performance across video processing, scientific computing, and advanced modeling—powered by broad support for high-performance AI processors. And with high-bandwidth PCIe Gen 5.0 lanes and DDR5 memory, it provides the speed and capacity to handle professional workloads and large-scale tasks without limits.

Latest AI Processors

    • NVIDIA H200NVL

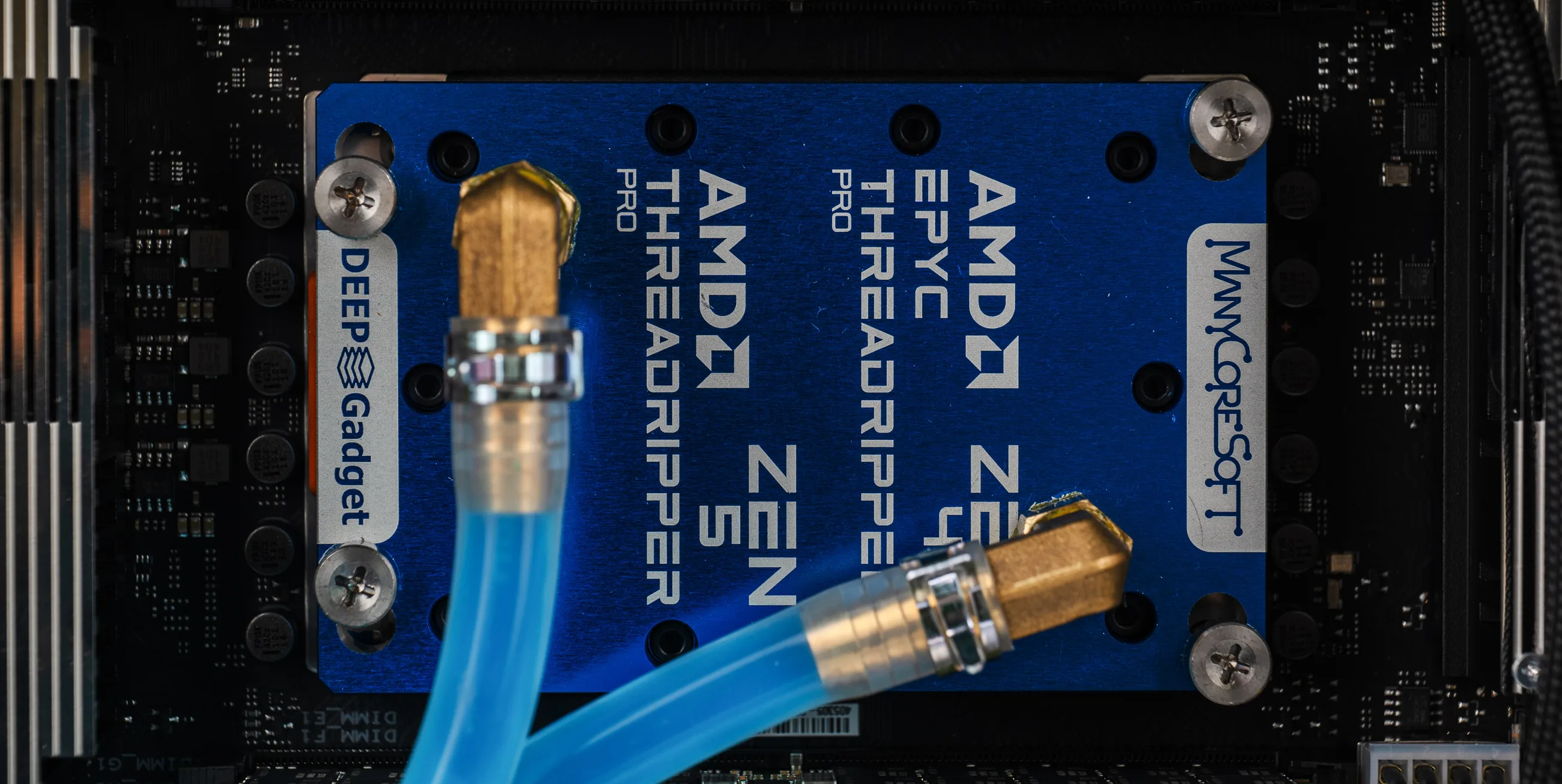

    • Latest CPUs. Up to dual configuration.

    • AMD Threadripper Pro 9000WX Series

    • PCIe gen 5 Slots

    • Up to 7 Gen 5 Slots
      Up to 2x greater bandwidth

    • DDR5-5600 Memory Support

    • Up to 2x Faster Speeds
      Up to 96GB x 8 Capacity

    • Support for various GPUs

    In AI learning, performance of TF32 and BFLOAT16 is crucial. GPUs that can be installed in deep gadgets have the following rankings for the corresponding metrics. With a robust product line and comprehensive GPU support, professionals requiring high specifications are poised for success.
    ModelManufacturerMemoryAI learning Perf
    TF32(FP32)
    (TFLOPS)    		AI Perf
    BF16(FP16)
    (TFLOPS)    		AI interfernce Perf
    INT8|FP8|FP4
    (TOPS/TFLOPS)    		Precision computation Perf
    FP64
    (TFLOPS)    		General purpose computing Perf
    FP32
    (TFLOPS)    		Rendering Perf
    RT Core
    (TFLOPS)
    RTX PRO 6000
    Blackwell
    Server Edition    		NVIDIAGDDR7
    96GB    		234
    (468*)    		468
    (936*)    		1,892
    (3,784*)    		1.88120354.5
    RTX PRO 6000
    Blackwell
    Max-Q    		NVIDIAGDDR7
    96GB    		219
    (438*)    		438
    (876*)    		1,755
    (3,511*)    		1.72110332.6
    H200 NVLNVIDIAHBM3e
    141GB    		417
    (835*)    		835
    (1,671*)    		1,670
    (3,341*)    		3060-
    H100 NVLNVIDIAHBM3
    94GB    		494
    (989*)    		989
    (1,979*)    		1,979
    (3,958*)    		3467-
    RTX5090NVIDIAGDDR7
    32GB    		104.8
    (209.6*)    		419
    (838*)    		1,676
    (3,352*)    		1.64104.8318
    Wormhole
    n300    		TenstorrentGDDR6
    24GB
    H100NVIDIAHBM2e
    80GB    		378
    (756*)    		756
    (1,513*)    		1,513
    (3,026*)    		2651-
    A100XNVIDIAHBM2e
    80GB    		159
    (318*)    		318
    (636*)    		636
    (1,272*)    		9.919.9-
    A100NVIDIAHBM2e
    80GB    		156
    (312*)    		312
    (624*)    		624
    (1,248*)    		9.719.5-
    L40SNVIDIAGDDR6
    48GB    		183
    (366*)    		362
    (733*)    		733
    (1,466*)    		1.491.6209
    6000 AdaNVIDIAGDDR6
    48GB    		182
    (364*)    		364
    (729*)    		729
    (1,457*)    		1.491.1210.6
    L40NVIDIAGDDR6
    48GB    		90.5
    (181*)    		181
    (362*)    		362
    (724*)    		1.490.5209
    A6000NVIDIAGDDR6
    48GB    		38.7
    (77.4*)    		77.4
    (154.8*)    		154.8
    (309.7*)    		1.338.775.6
    5000 AdaNVIDIAGDDR6
    32GB    		65.3
    (130.5*)    		261
    (522*)    		522
    (1,044*)    		165.28151
    A5000NVIDIAGDDR6
    24GB    		27.8
    (55.6*)    		55.6
    (111.2*)    		111.2
    (222.4*)    		0.927.854.2
    RTX4090NVIDIAGDDR6
    24GB    		82.5
    (165*)    		165
    (330*)    		660.6
    (1,321*)    		1.382.5191
    RTX4090 DNVIDIAGDDR6
    24GB    		73.54
    (147*)    		147
    (294*)    		588
    (1,176*)    		1.1473.54170
    RTX4080NVIDIAGDDR6
    16GB    		48.7
    (97.4*)    		97.4
    (195*)    		389.8
    (779.8*)    		0.748.7112.7
    RTX4070TiNVIDIAGDDR6
    		40.1
    (80.2*)    		80.2
    (160.4*)    		320
    (641*)    		0.640.193
    MI250AMDHBM2e
    128GB    		45.3
    (90.5**)    		362.1362.190.545.3-
    MI210AMDHBM2e
    64GB    		22.6
    (45.3**)    		18118145.322.6-
    MI100AMDHBM2
    32GB    		23.192.392.311.523.1-
    RX7900XTXAMDGDDR6
    24GB    		611231233.861-

    *Performance using the new sparsity feature
    **Performance using matrix core
    (Specifications not disclosed by the manufacturer are estimates, so there may be errors.)

    Full support for 10G and IPMI

    Definitely from the basics. Support two 10G Ethernet ports and one IPMI port.
    ipmi

    Support for high-speed NIC

    No need to worry about the network with support for high-speed network adapters, including InfiniBand NDR, HDR, EDR, Ethernet 200G, and 100G.
    nic카드

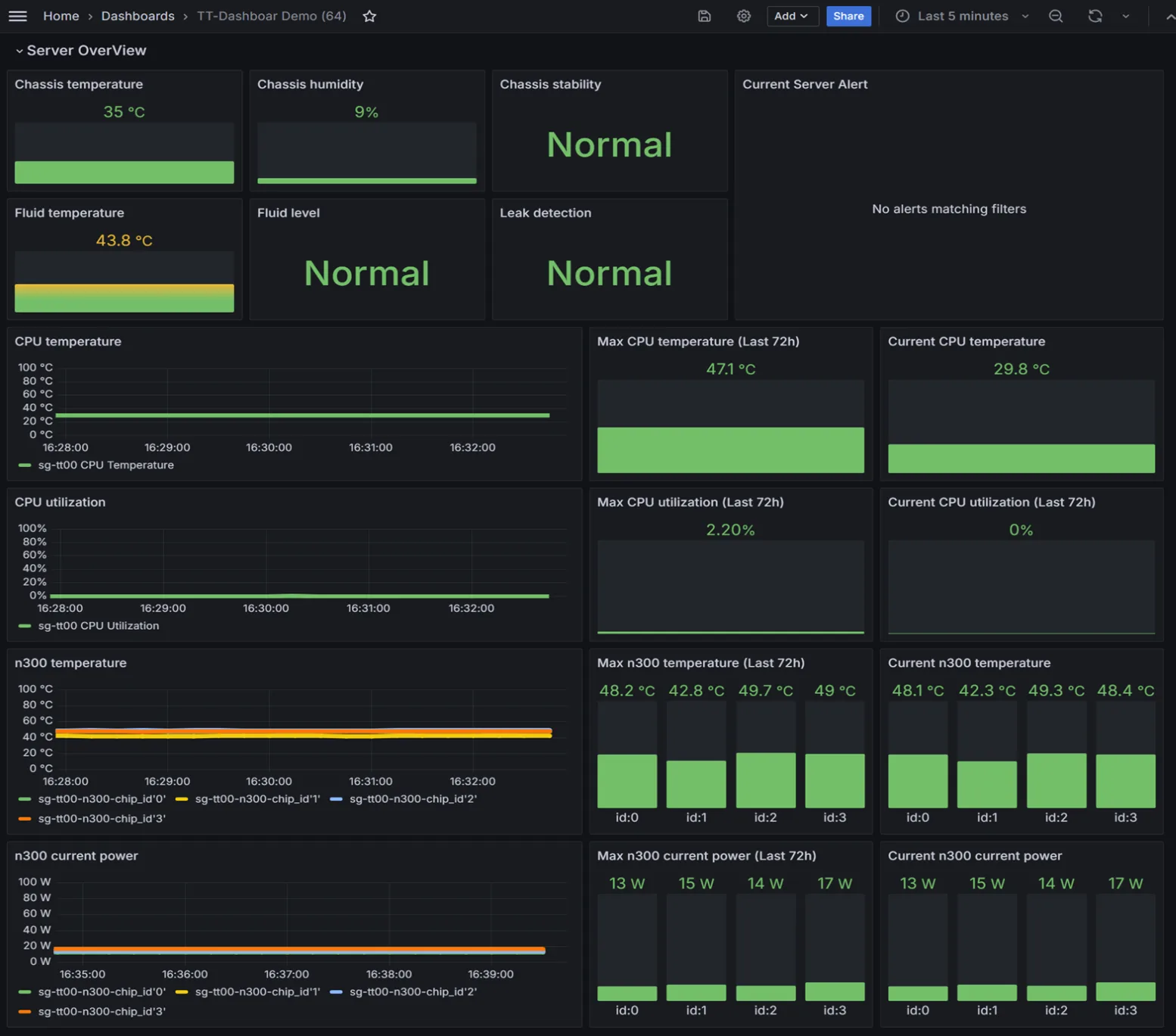

    GADGETINI MONITORING

    Monitoring that perfects cooling performance. Now, servers come standard with a front display and Gadgetini, the built-in monitoring system. Sensors embedded throughout the system continuously check performance in real time, ensuring everything runs smoothly. Key metrics can be viewed at a glance on the front display, and with email and Slack integration, server management becomes even easier. Plus, with the dashboard, you can track sensor logs, manage servers, and oversee entire clusters—all in one place.

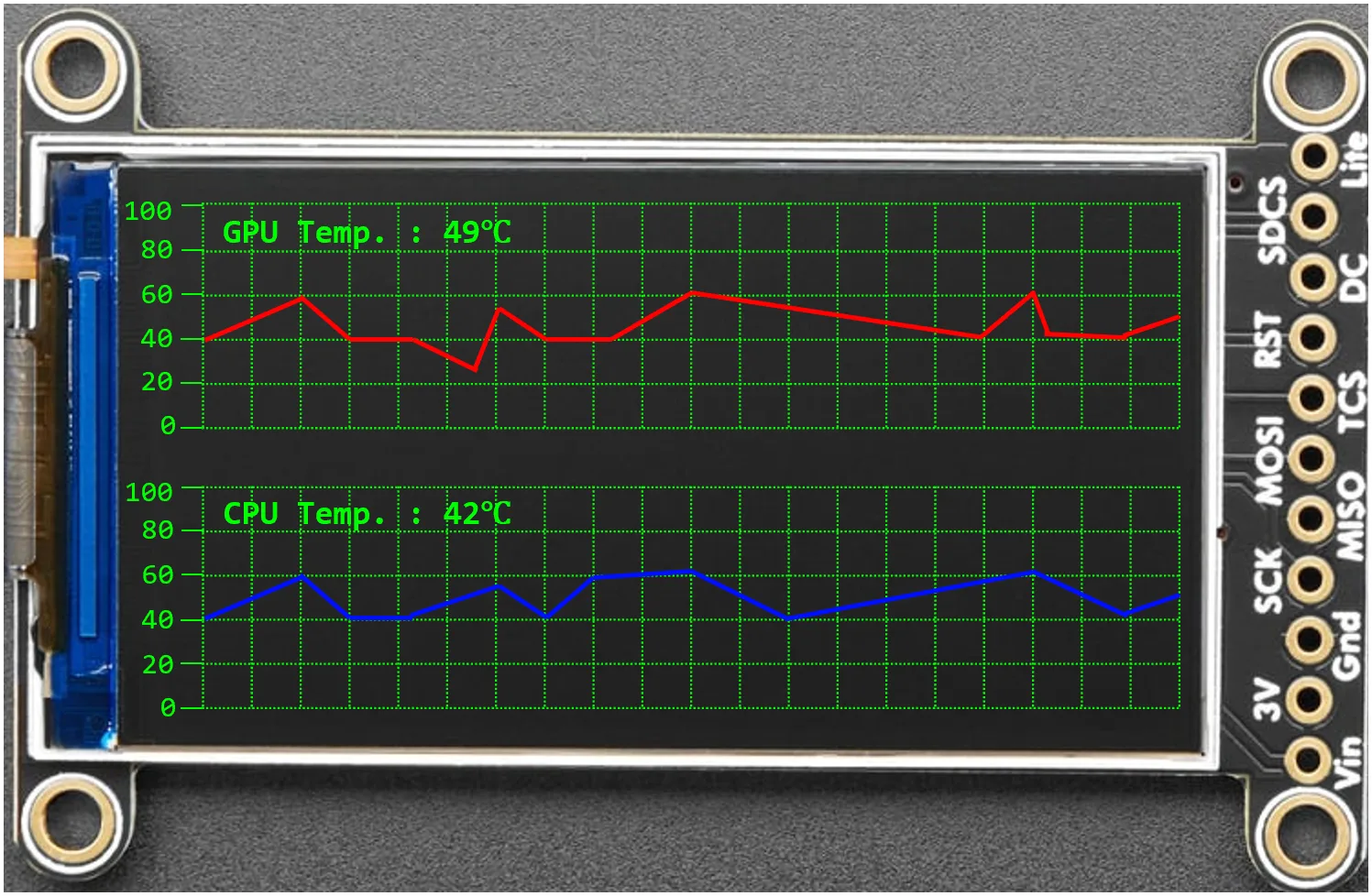

    Manage AI efficiency and key metrics. Real-time AI processor temperature monitoring, right on the display. Get notified before heat affects performance.

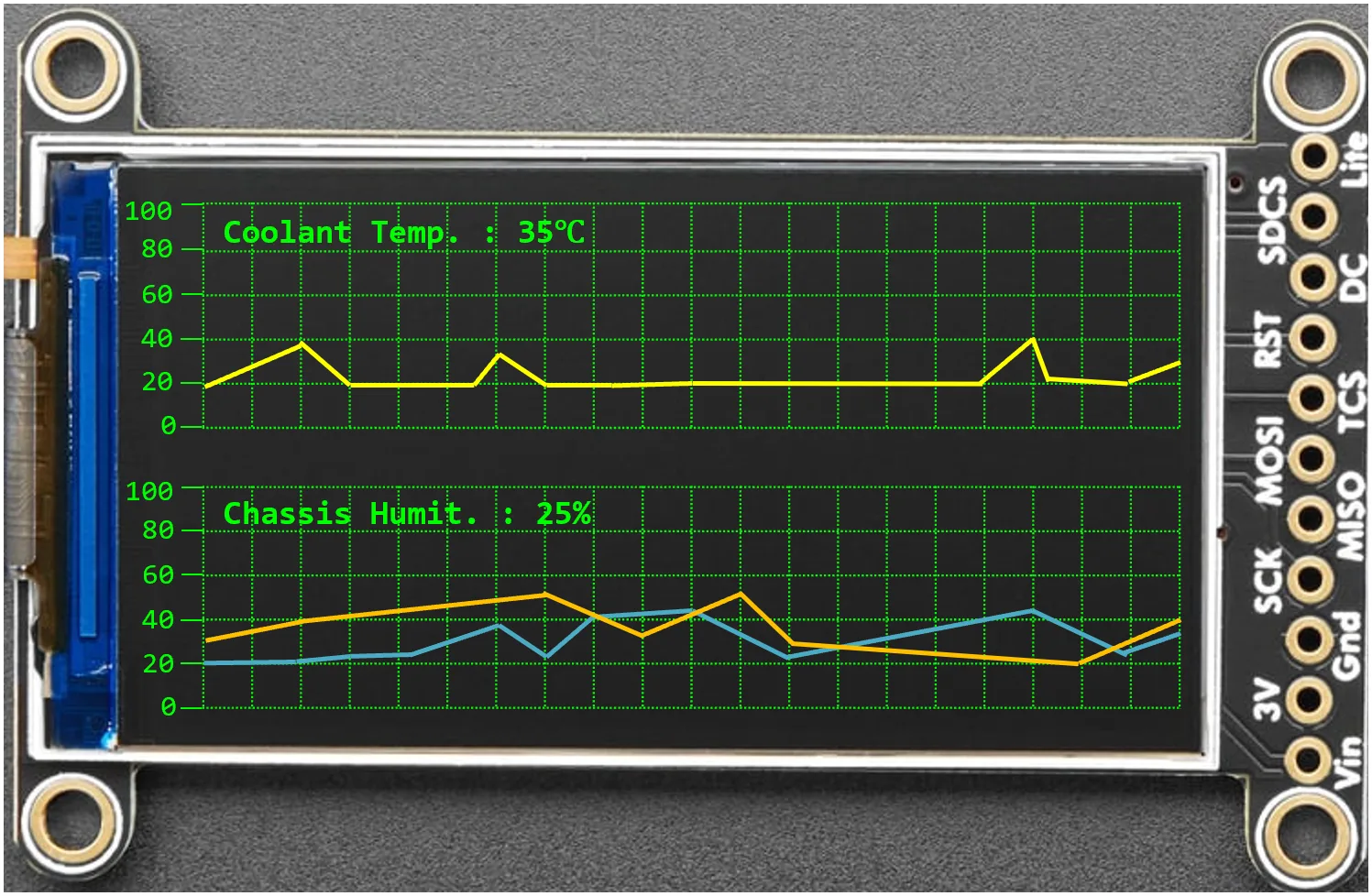

    Like looking inside the server—only easier. Monitor coolant temperature and chassis humidity at a glance for total peace of mind.

    Chassis Insights

    Internal TemperatureInternal Humidity

    Coolant Status

    Coolant TemperatureCoolant LevelLeak Detection

    CPU & AI Processor Status

    Chip TemperatureMemory UtilizationPower Consumption
    Q: What happens if there is a leak in the Liquid Cooling System?
    deep gadget is engineered as a fully sealed structure, minimizing the risk of leakage under normal circumstances. However, we do have precautionary measures in place. Our system is equipped to shut down automatically in the event of a critical failure such as a leak caused by physical shock or other factors. Additionally, the amount of coolant that may leak due to our liquid cooling system design is minimal, typically not exceeding tens of milliliters. This level of leakage has negligible impact on other devices and minimal effect on deep gadget itself. In the event of any malfunction, our engineers will promptly address the issue, replacing the problematic part and reinstalling it as needed.

    DESIGN

    New Cooling. Even Newer Design. dg5W isn't just more powerful—it's completely re-engineered, inside and out. The new internal layout maximizes space efficiency, allowing for high-density GPU placement. Its sleek aluminum housing blends seamlessly into any workspace, making it perfect for desktop use. With the I/O panel now positioned at the front, hot air is directed away from critical components, preventing heat damage. Whether used as a tower or rack-mounted, dg5W is built to stay durable and reliable for the long run.

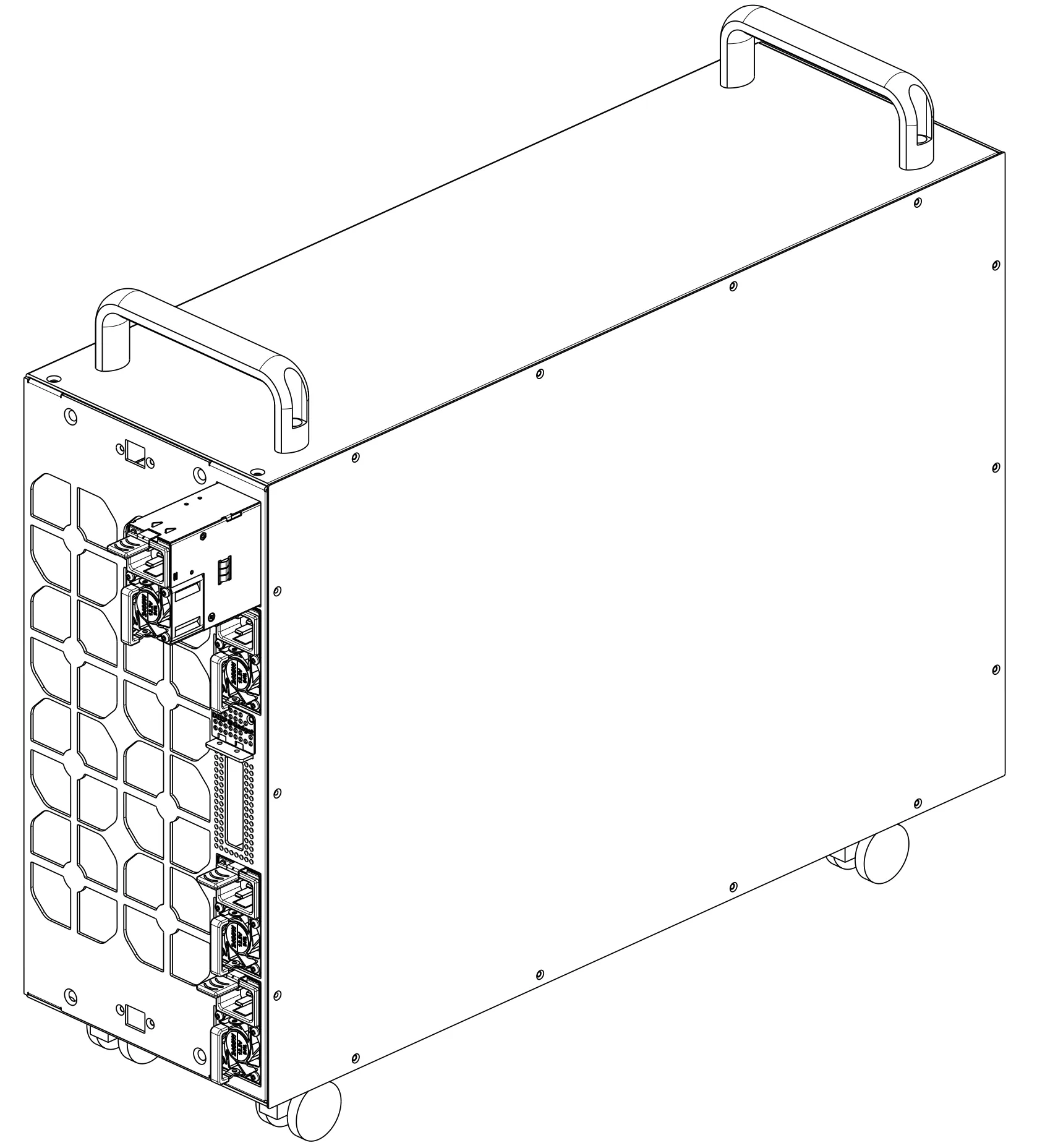

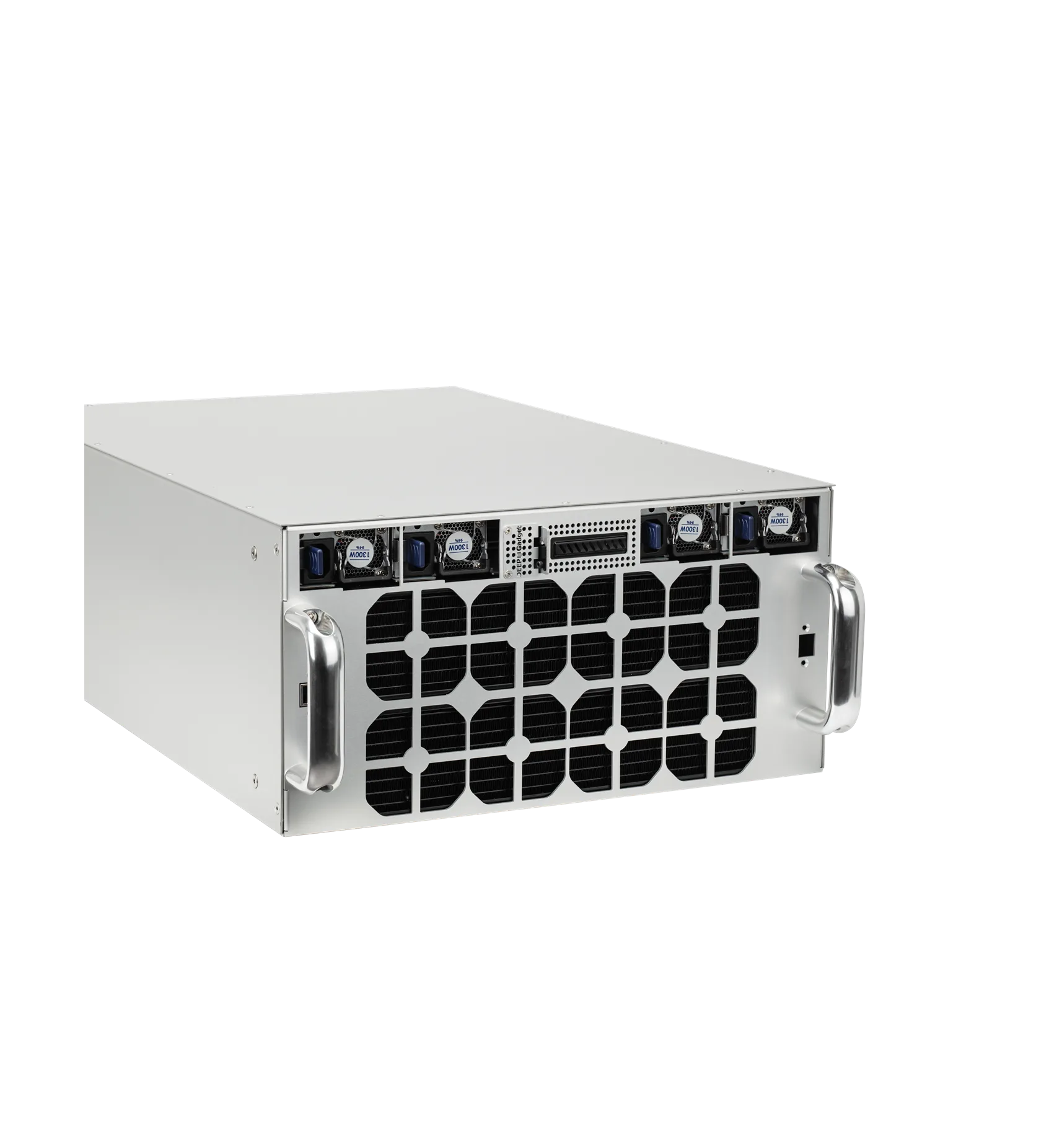

    Reliable power in any situation. Every dg5W configuration comes with four enterprise-grade PSUs, delivering over 1300W of power to ensure stable, reliable support for AI processors. With redundant hot-swappable power supplies, critical workloads and data remain secure, even during unexpected situations.

    스토리지스토리지

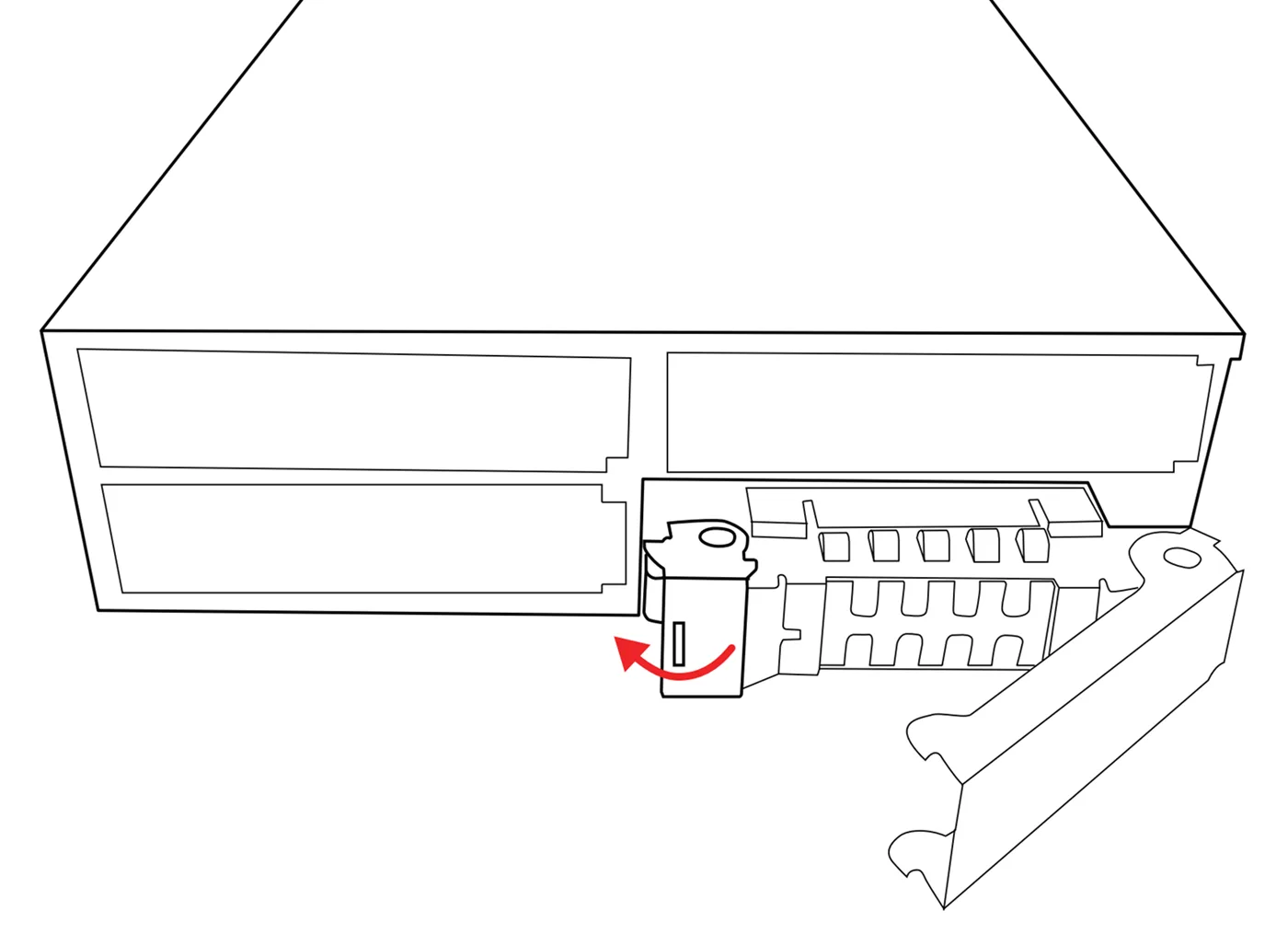

    Up to 8 Expansion Storage Drives. Expand beyond the NVMe M.2 main storage with up to eight 2.5" SSDs—delivering a solid 64TB of additional capacity. Hot-swappable bays let you upgrade or replace drives without interruption, while RAID configurations keep your data secure.

    Instant deep learning.
    Preloaded for AI. Ready to train from day one.

    deep gadget comes preloaded with all the software needed for AI research and development—so you can start deep learning the moment you power it on. From the OS to the deep learning stack, everything is optimized by the deep gadget team. Designed for effortless compatibility, so you can stay focused on your research.


    OS

    • Ubuntu
      RHEL
      Rocky Linux
      Windows

    • Drivers

    • NVIDIA
      AMD
      Tenstorrent
      Infiniband/GbE

    • Runtime & Libraries

    • CUDA
      cuDNN
      NCCL
      cuBLAS
      TensorRT
      ROCM

    • Deep Learning Frameworks & Solutions

    • PyTorch
      TensorFlow
      DeepSpeed
      Ollama
      Horovod
      vLLM
      3rd Party Solutions

    • Development Tools

    • MPI
      Anaconda
      Docker

    • SPEC

    • noiseQuietness

      20 ~ 53dB (Full load)

    • sizeSize
      W x D x H

      445mm x 780mm x 225mm(5U)
      780mm(model 660mm + Handle 120mm)

    • cpuCPU

      AMD Ryzen™ Threadripper PRO 9000 Series Processors

    • gpuGPU

      Up to 8 GPUs
      NVIDIA RTX PRO 6000 Blackwell
      NVIDIA RTX 5090
      NVIDIA RTX 6000 Ada
      NVIDIA L40S
      NVIDIA H200 NVL(NVL Bridge encluded)
      Tenstorrent Wormhole n300s
      Tenstorrent Blackhole p150a
      Furiosa Warboy

    • ramMemory

      Up to 768GB
      DDR5 5600 ECC

    • hddHDD

      Up to 4TB main storage
      M.2 NVMe SSD

      Up to64TB sub-storage
      M.2 NVMe SSD / 2.5” SSD / 2.5” HDD

    • gpuPCIe

      7 PCIe 5.0 x16

    • softwareOS

      Windows, RHEL, Ubuntu, Rocky Linux

    • networkNetwork

      2 x 10GbE Base-T
      IPMI
      InfiniBand NDR / HDR / EDR Ethernet 400G / 200G / 100G
      NIC - Infiniband Card 100G / 200G Dual Port (Option)

    • asWarranty

      For 3 years

    • powerPower

      4 x 2,000W(8.0kW) 80 Plus Platinum

    • manualManual & Warranty

      Manual download더보기
