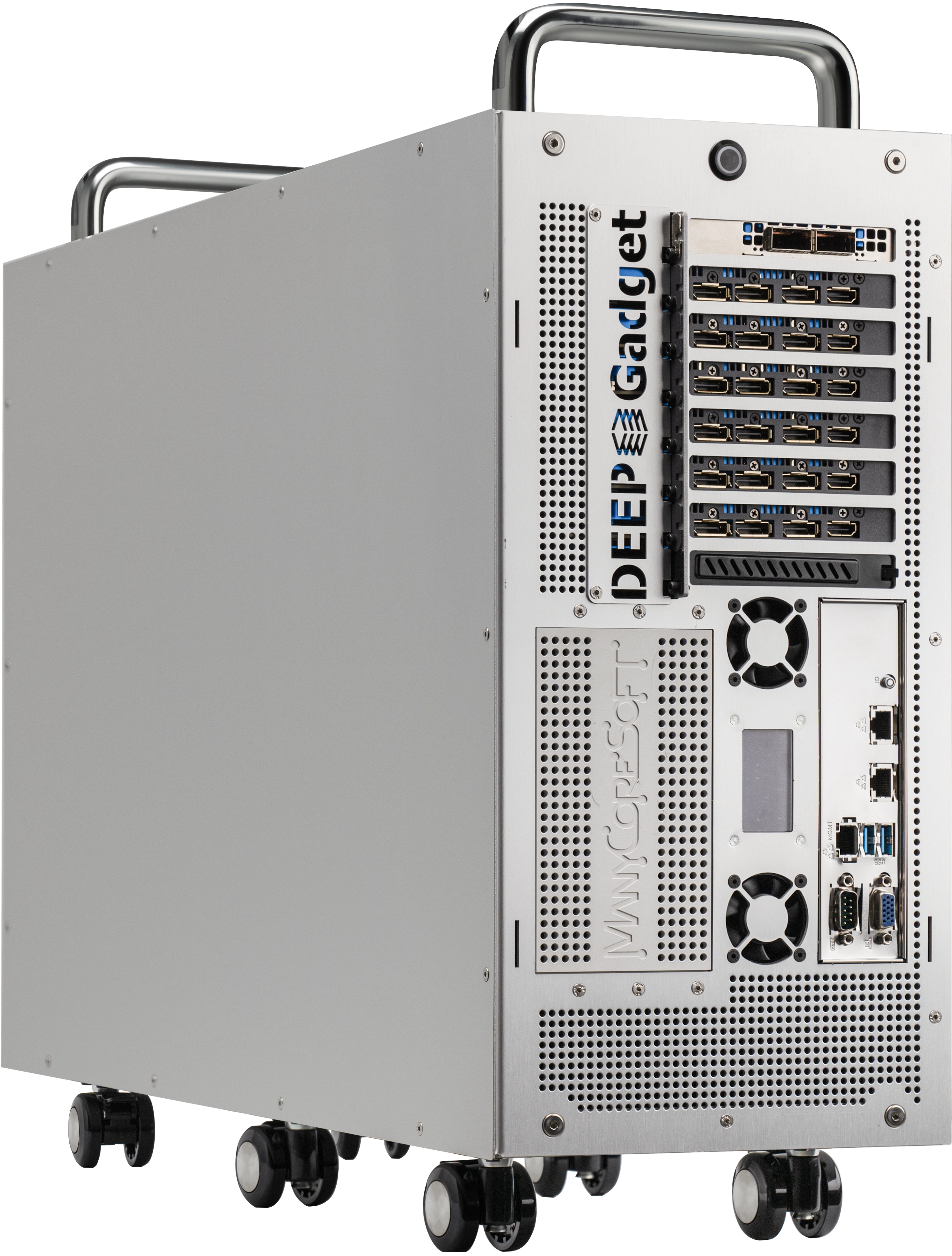

dg5W

Still compact. Twice the power.
Now supercharged by deep gadget's liquid cooling.

Where compact design meets powerful cooling. The all-new deep gadget liquid cooling system is so efficient that fits twice the AI processors in the same space—while staying whisper-quiet. Designed with a versatile form factor and full support for the latest architectures, it's built to excel anywhere, from data centers to office spaces.

78cm44.5cm

Compact 2/3-size design

Expandable with up to 3 additional GPUS

Based on comparison with other GPU servers

PERFORMANCE

Twice the performance.

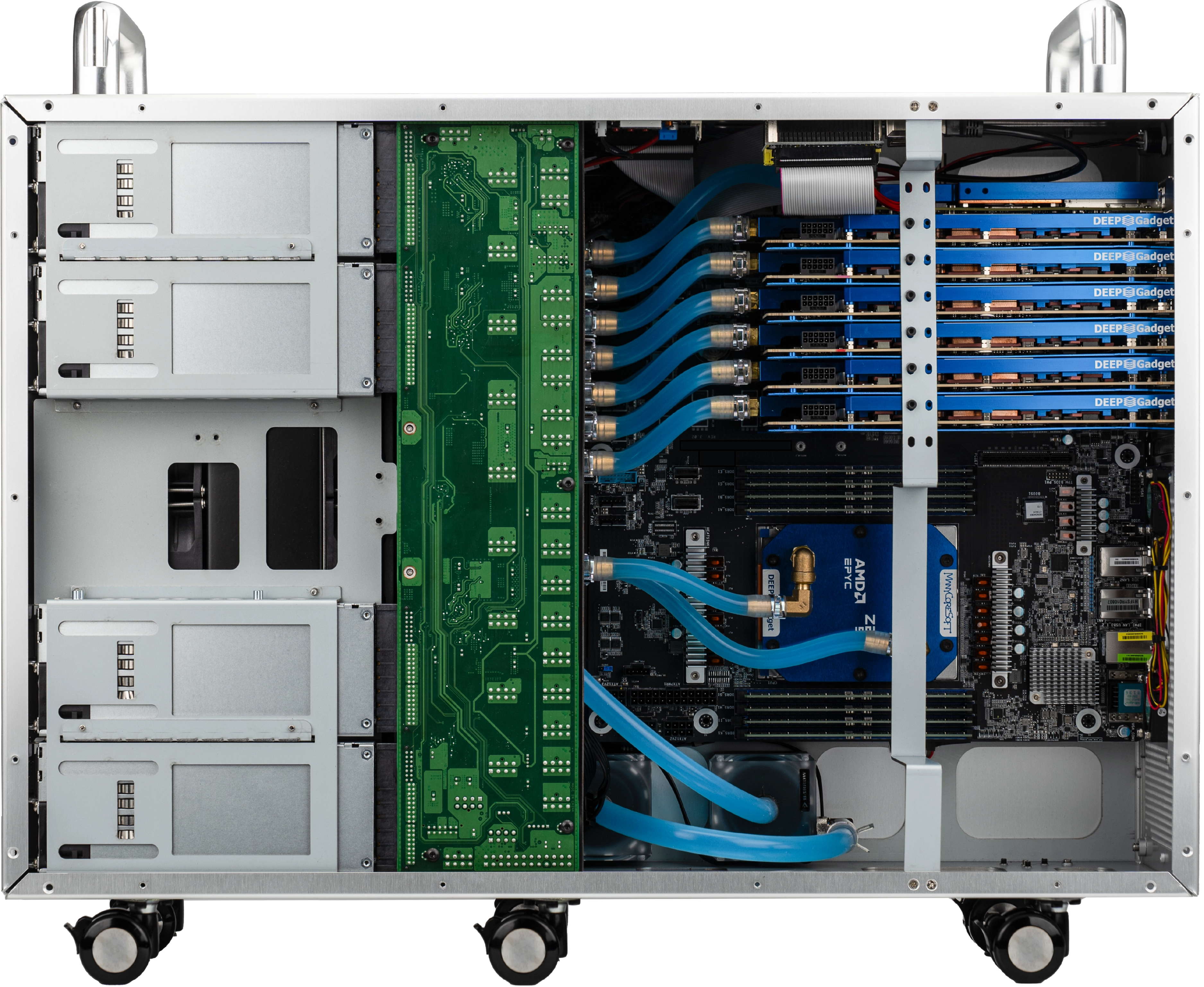

The latest deep gadget liquid cooling system keeps the dg5W cool, even with 7 high-heat AI chips—including the NVIDIA H200NVL and RTX 5090. And yet, it's quiet enough to sit right next to. Now, even ultra-high-performance workloads run seamlessly in your office.

Up to

7

Number of AI processors
that can be installed

Up to

27.7PFLOPS

AI performance
(Based on 7 H100 NVL, FP8)

Up to

900GB/s

GPU-to-GPU communication speed
(With H200 NVL NVLink bridge)

Up to

846GB

HBM3E GPU memory

Up to

1,821B

Parameter model capacity
About 10x the size of GPT-3

Up to

2.29x

Performance improvement
Compared to dg4W maximum performance

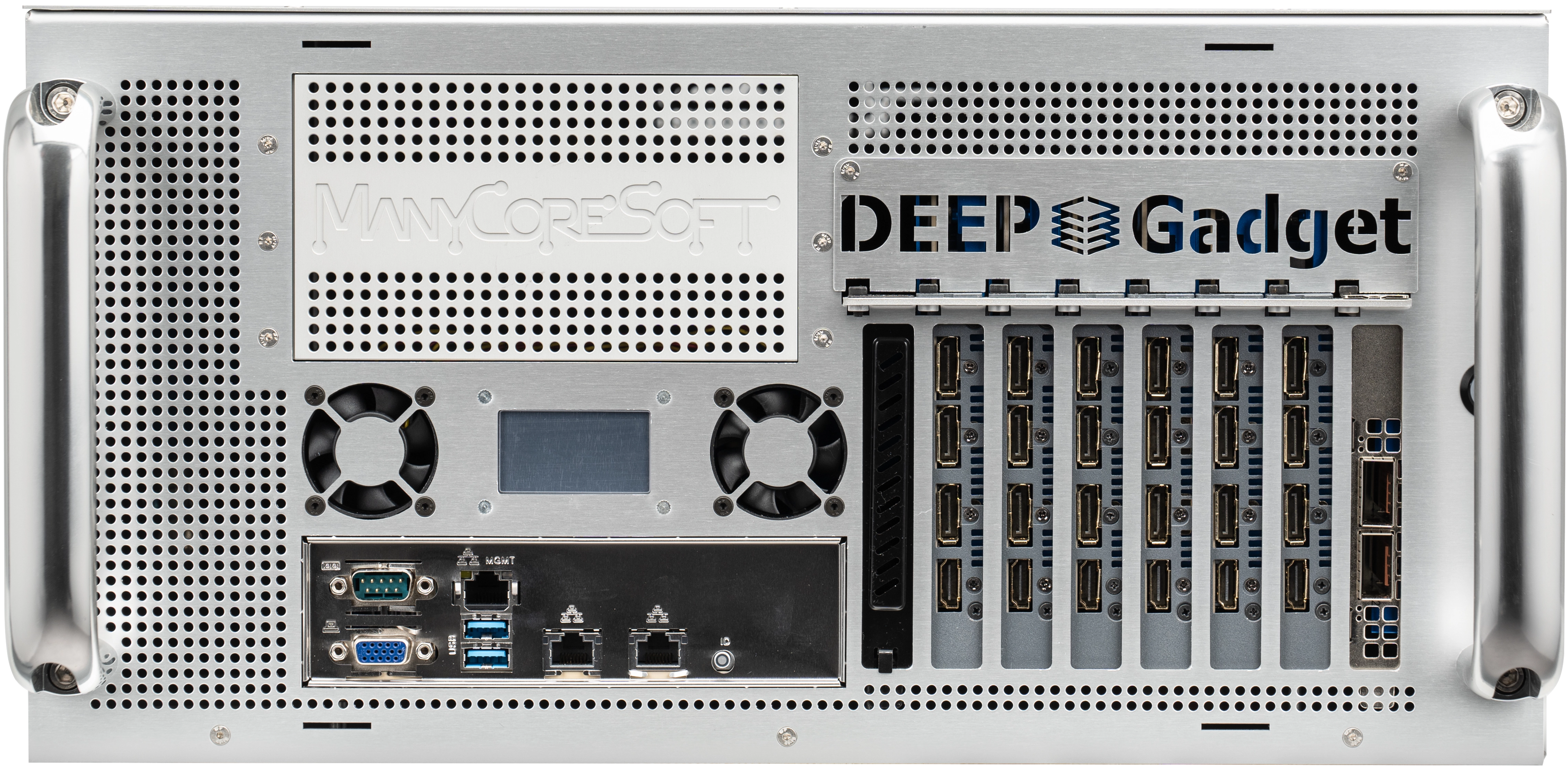

RACK MOUNT

Versatile from data center to office. The dg5W fits effortlessly into a rack, delivering the same powerful performance with whisper-quiet efficiency. Its optimized airflow enhances cooling while eliminating the need for extra equipment—cutting data center costs by up to 50%. Instead of the dual-wheel casters found in the tower model, the rack mount features precision-engineered brackets for secure, tool-free installation.

deep gadget's exclusive
liquid cooling technology.

deep gadget isn't just another liquid cooling solution. It's a next-generation system, precision-engineered
with expertise from Seoul National University's supercomputer research, designed by a 20-year Toyota Motor Corporation veteran, and refined through a decade of R&D.

Management-free built-in Liquid Cooling System

A fully sealed inner liquid conduit ensures the world's highest level of stability.

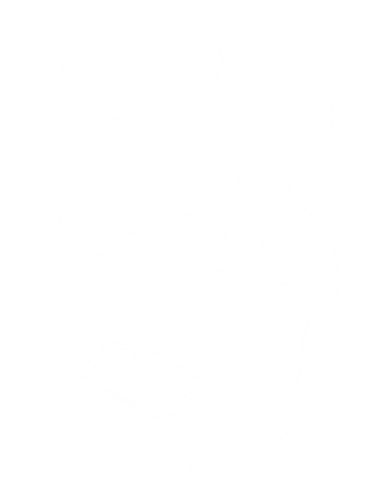

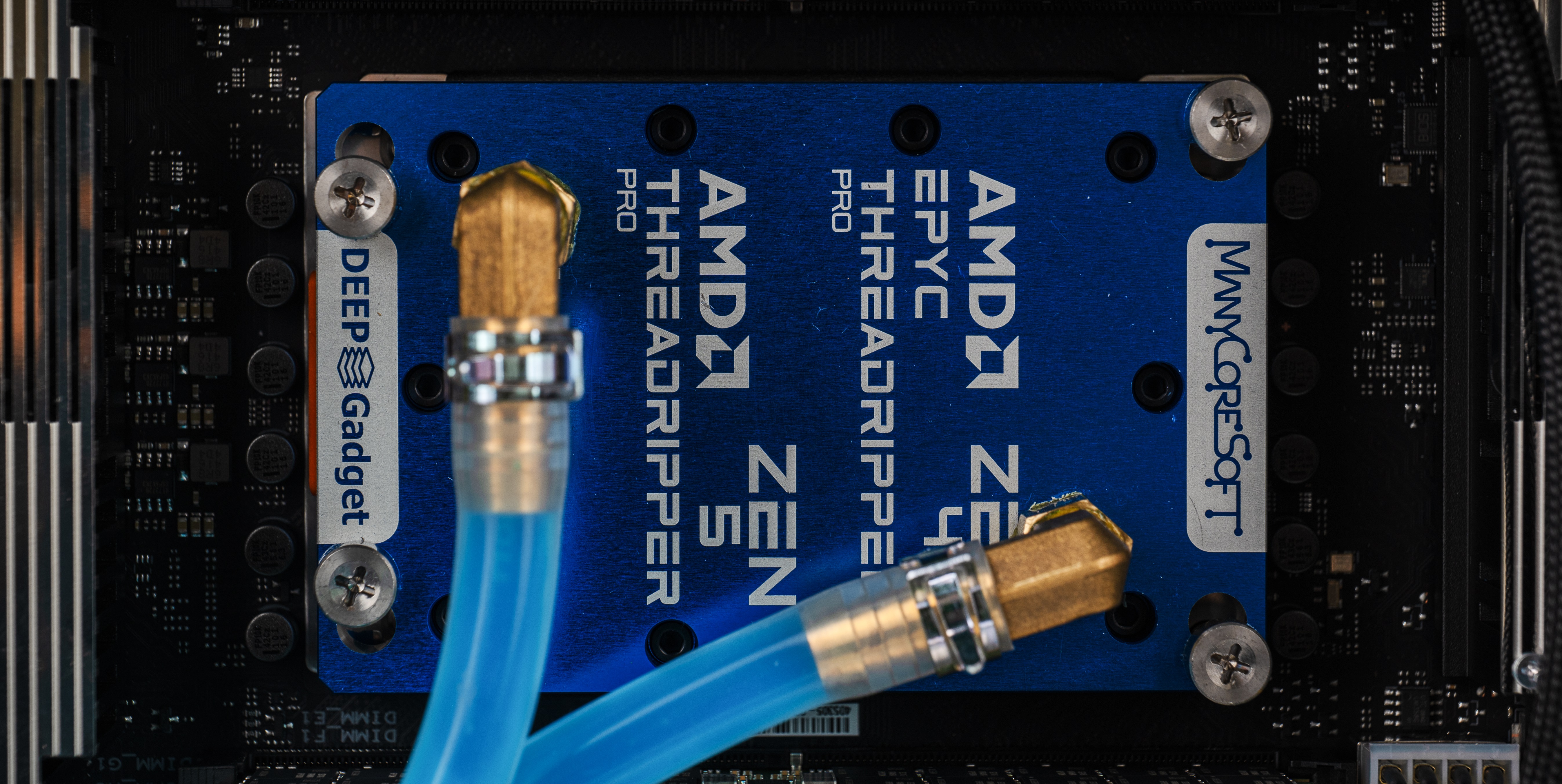

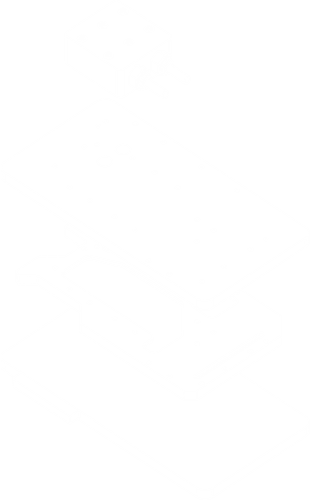

Unmatched in-house cooling plate design.
deep gadget®'s effecient cooling system distinct from others

dg5W

Cooling System

General custom

Cooling System

dg4r도표Maintaining low temperatures even during high-specification tasks, deep gadget® cools each component independently. This ensures optimal performance of each part by preventing heat buildup, unlike conventional liquid cooling systems.

Equipped with world-class Dual-Pump cooling systems to prevent heat-induced GPU throttling and extend life

deep gadgetAlways 100% performance
그래프
General GPU serverThrottling(lowering performance)

deep gadget

GPU performance does not deteriorate as the temperature remains around 60℃, even if the GPU is used at its maximum.

General GPU server

The GPU operating clock automatically drops and performance decreases as the GPU temperature rises to 80~90℃.

World-leading adaptive Liquid Cooling System

deep gadget adaptively controls the Liquid Cooling System by constantly checking the system's usage rate and temperature.
If your system is doing light work, it will run quieter.
dg4액체냉각시스템
CUTTING-EDGE ARCHITECTURE

Powering your work with the latest technology. deep gadget's unrivaled liquid cooling efficiency meets cutting-edge architecture. Designed for more than just AI training, it delivers flawless performance across video processing, scientific computing, and advanced modeling—powered by broad support for high-performance AI processors. And with high-bandwidth PCIe Gen 5.0 lanes and DDR5 memory, it provides the speed and capacity to handle professional workloads and large-scale tasks without limits.

Latest AI Processors

    • Tenstorrent
        NVIDIA H200NVL
        NVIDIA RTX 5090

      • Latest CPUs. Up to dual configuration.

      • AMD Threadripper Pro 7000WX Series
        5th AMD EPYC 9005 Series
        5th Intel Xeon Scalable Series

      • PCIe gen 5 Slots

      • Up to 7 Gen 5 Slots
        Up to 2x greater bandwidth

      • DDR5-5600 Memory Support

      • Up to 2x Faster Speeds
        Up to 96GB x 8 Capacity

      • Support for various GPUs

      In AI learning, performance of TF32 and BFLOAT16 is crucial. GPUs that can be installed in deep gadgets have the following rankings for the corresponding metrics. With a robust product line and comprehensive GPU support, professionals requiring high specifications are poised for success.
      ModelManufacturerMemoryAI learning Perf
      TF32(FP32)
      (TFLOPS)      		AI Perf
      BF16(FP16)
      (TFLOPS)      		AI interfernce Perf
      INT8|FP8|FP4
      (TOPS/TFLOPS)      		Precision computation Perf
      FP64
      (TFLOPS)      		General purpose computing Perf
      FP32
      (TFLOPS)      		Rendering Perf
      RT Core
      (TFLOPS)
      H200 NVLNVIDIAHBM3e
      141GB      		417
      (835*)      		835
      (1,671*)      		1,670
      (3,341*)      		3060-
      H100 NVLNVIDIAHBM3
      94GB      		494
      (989*)      		989
      (1,979*)      		1,979
      (3,958*)      		3467-
      RTX5090NVIDIAGDDR7
      32GB      		104.8
      (209.6*)      		419
      (838*)      		1,676
      (3,352*)      		1.637104.8318
      Wormhole
      n300      		TenstorrentGDDR6
      24GB
      H100NVIDIAHBM2e
      80GB      		378
      (756*)      		756
      (1,513*)      		1,513
      (3,026*)      		2651-
      A100XNVIDIAHBM2e
      80GB      		159
      (318*)      		318
      (636*)      		636
      (1,272*)      		9.919.9-
      A100NVIDIAHBM2e
      80GB      		156
      (312*)      		312
      (624*)      		624
      (1,248*)      		9.719.5-
      L40SNVIDIAGDDR6
      48GB      		183
      (366*)      		362
      (733*)      		733
      (1,466*)      		1.491.6209
      6000 AdaNVIDIAGDDR6
      48GB      		182
      (364*)      		364
      (729*)      		729
      (1,457*)      		1.491.1210.6
      L40NVIDIAGDDR6
      48GB      		90.5
      (181*)      		181
      (362*)      		362
      (724*)      		1.490.5209
      A6000NVIDIAGDDR6
      48GB      		38.7
      (77.4*)      		77.4
      (154.8*)      		154.8
      (309.7*)      		1.338.775.6
      5000 AdaNVIDIAGDDR6
      32GB      		65.3
      (130.5*)      		261
      (522*)      		522
      (1,044*)      		165.28151
      A5000NVIDIAGDDR6
      24GB      		27.8
      (55.6*)      		55.6
      (111.2*)      		111.2
      (222.4*)      		0.927.854.2
      RTX4090NVIDIAGDDR6
      24GB      		82.5
      (165*)      		165
      (330*)      		660.6
      (1,321*)      		1.382.5191
      RTX4090 DNVIDIAGDDR6
      24GB      		73.54
      (147*)      		147
      (294*)      		588
      (1,176*)      		1.1473.54170
      RTX4080NVIDIAGDDR6
      16GB      		48.7
      (97.4*)      		97.4
      (195*)      		389.8
      (779.8*)      		0.748.7112.7
      RTX4070TiNVIDIAGDDR6
      		40.1
      (80.2*)      		80.2
      (160.4*)      		320
      (641*)      		0.640.193
      MI250AMDHBM2e
      128GB      		45.3
      (90.5**)      		362.1362.190.545.3-
      MI210AMDHBM2e
      64GB      		22.6
      (45.3**)      		18118145.322.6-
      MI100AMDHBM2
      32GB      		23.192.392.311.523.1-
      RX7900XTXAMDGDDR6
      24GB      		611231233.861-

      *Performance using the new sparsity feature
      **Performance using matrix core
      (Specifications not disclosed by the manufacturer are estimates, so there may be errors.)

      Full support for 10G and IPMI

      Definitely from the basics. Support two 10G Ethernet ports and one IPMI port.
      ipmi

      Support for high-speed NIC

      No need to worry about the network with support for high-speed network adapters, including InfiniBand NDR, HDR, EDR, Ethernet 200G, and 100G.
      nic카드

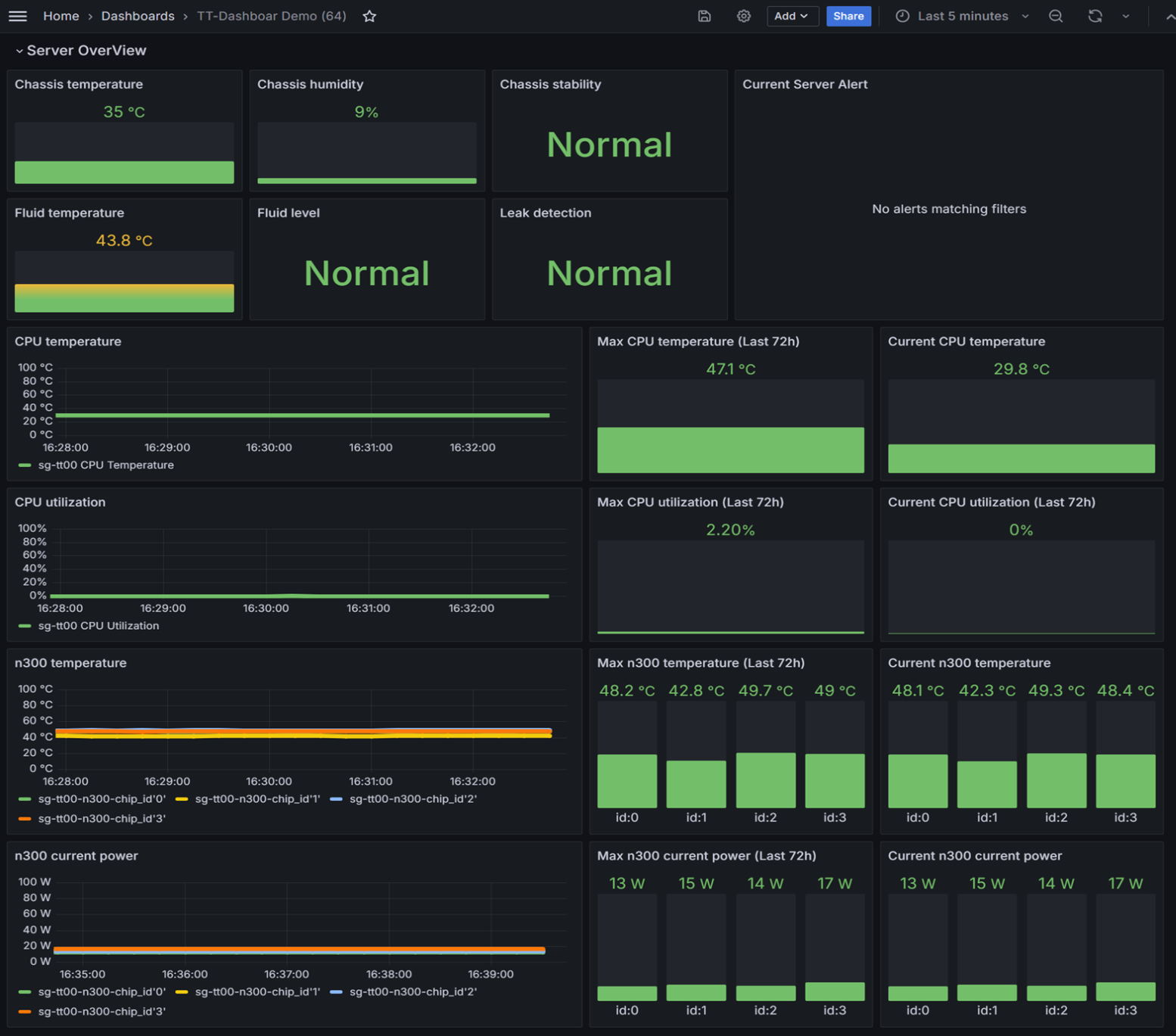

      GADGETINI MONITORING

      Monitoring that perfects cooling performance. Now, servers come standard with a front display and Gadgetini, the built-in monitoring system. Sensors embedded throughout the system continuously check performance in real time, ensuring everything runs smoothly. Key metrics can be viewed at a glance on the front display, and with email and Slack integration, server management becomes even easier. Plus, with the dashboard, you can track sensor logs, manage servers, and oversee entire clusters—all in one place.

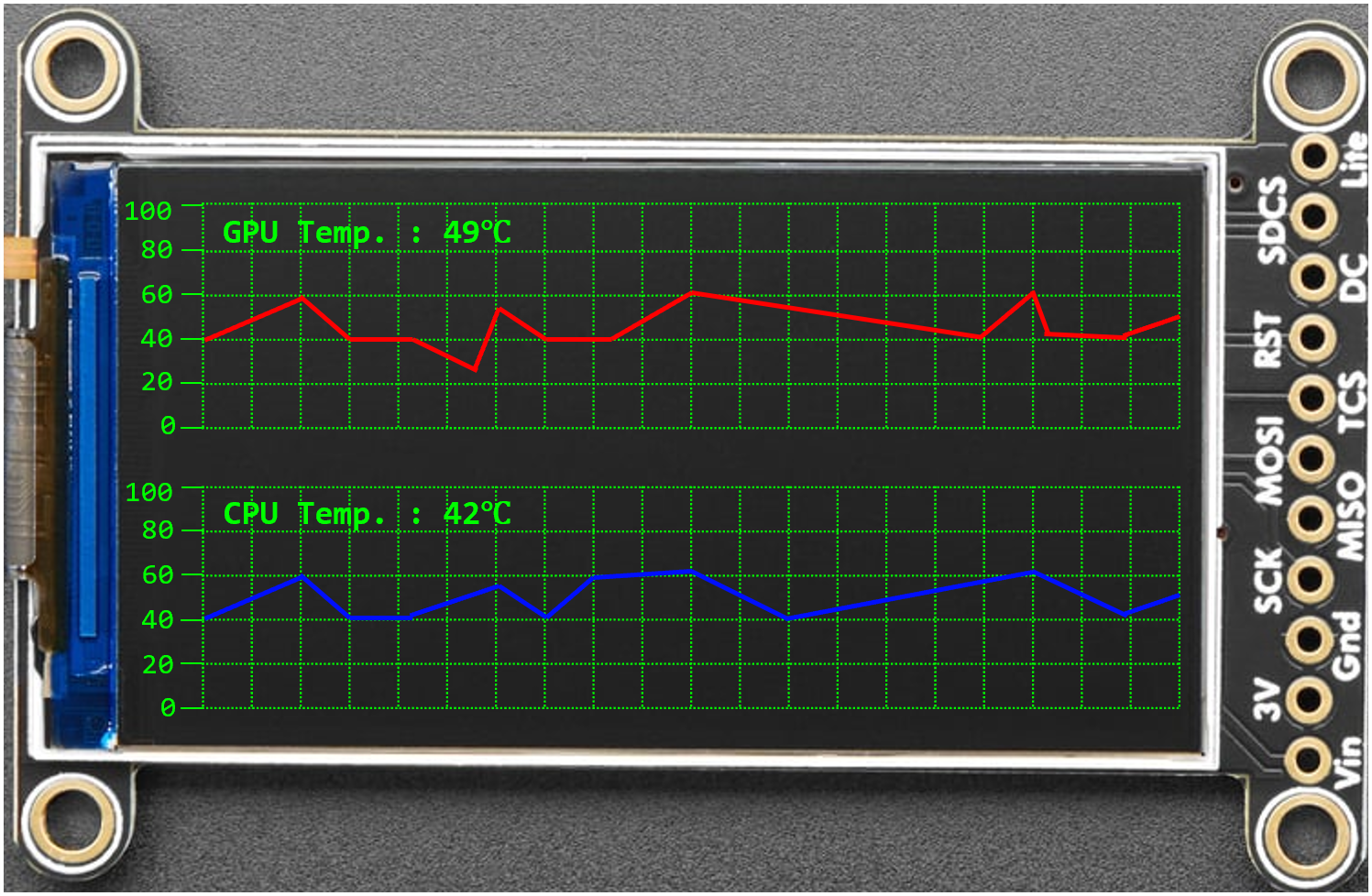

      Manage AI efficiency and key metrics. Real-time AI processor temperature monitoring, right on the display. Get notified before heat affects performance.

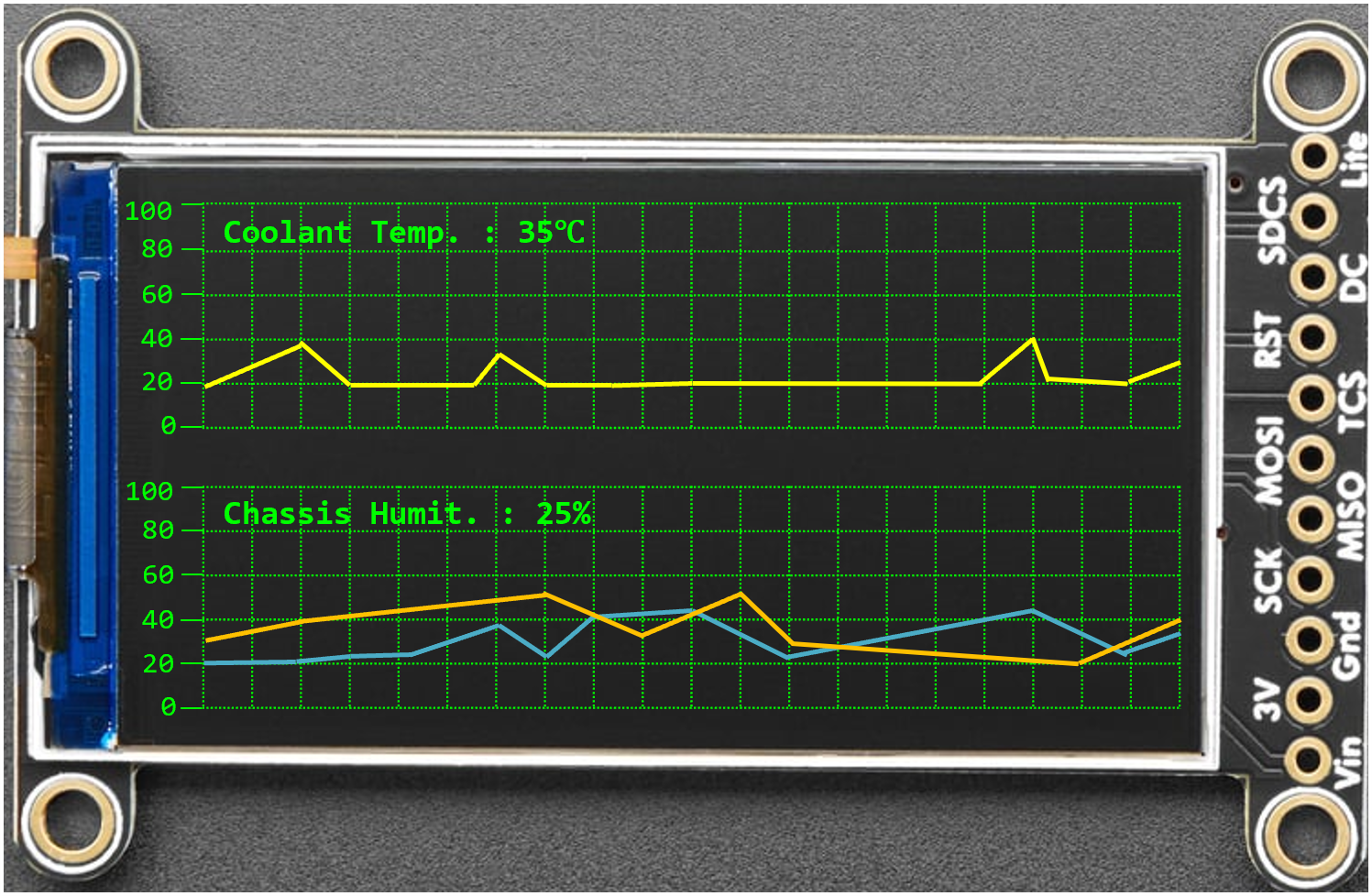

      Like looking inside the server—only easier. Monitor coolant temperature and chassis humidity at a glance for total peace of mind.

      Chassis Insights

      Internal Temperature
      Internal Humidity

      Coolant Status

      Coolant Temperature
      Coolant Level
      Leak Detection

      CPU & AI Processor Status

      Chip Temperature
      Memory Utilization
      Power Consumption
      Q: What happens if there is a leak in the Liquid Cooling System?
      deep gadget is engineered as a fully sealed structure, minimizing the risk of leakage under normal circumstances. However, we do have precautionary measures in place. Our system is equipped to shut down automatically in the event of a critical failure such as a leak caused by physical shock or other factors. Additionally, the amount of coolant that may leak due to our liquid cooling system design is minimal, typically not exceeding tens of milliliters. This level of leakage has negligible impact on other devices and minimal effect on deep gadget itself. In the event of any malfunction, our engineers will promptly address the issue, replacing the problematic part and reinstalling it as needed.

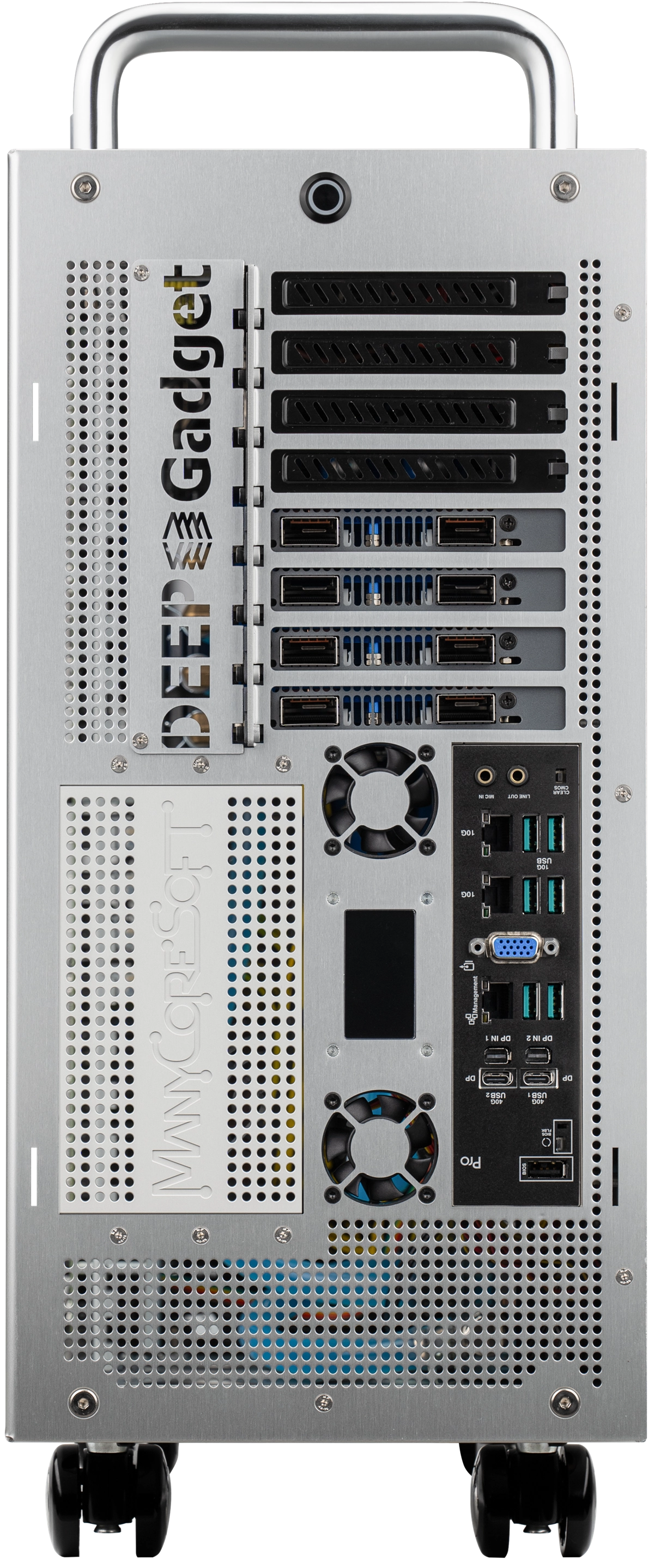

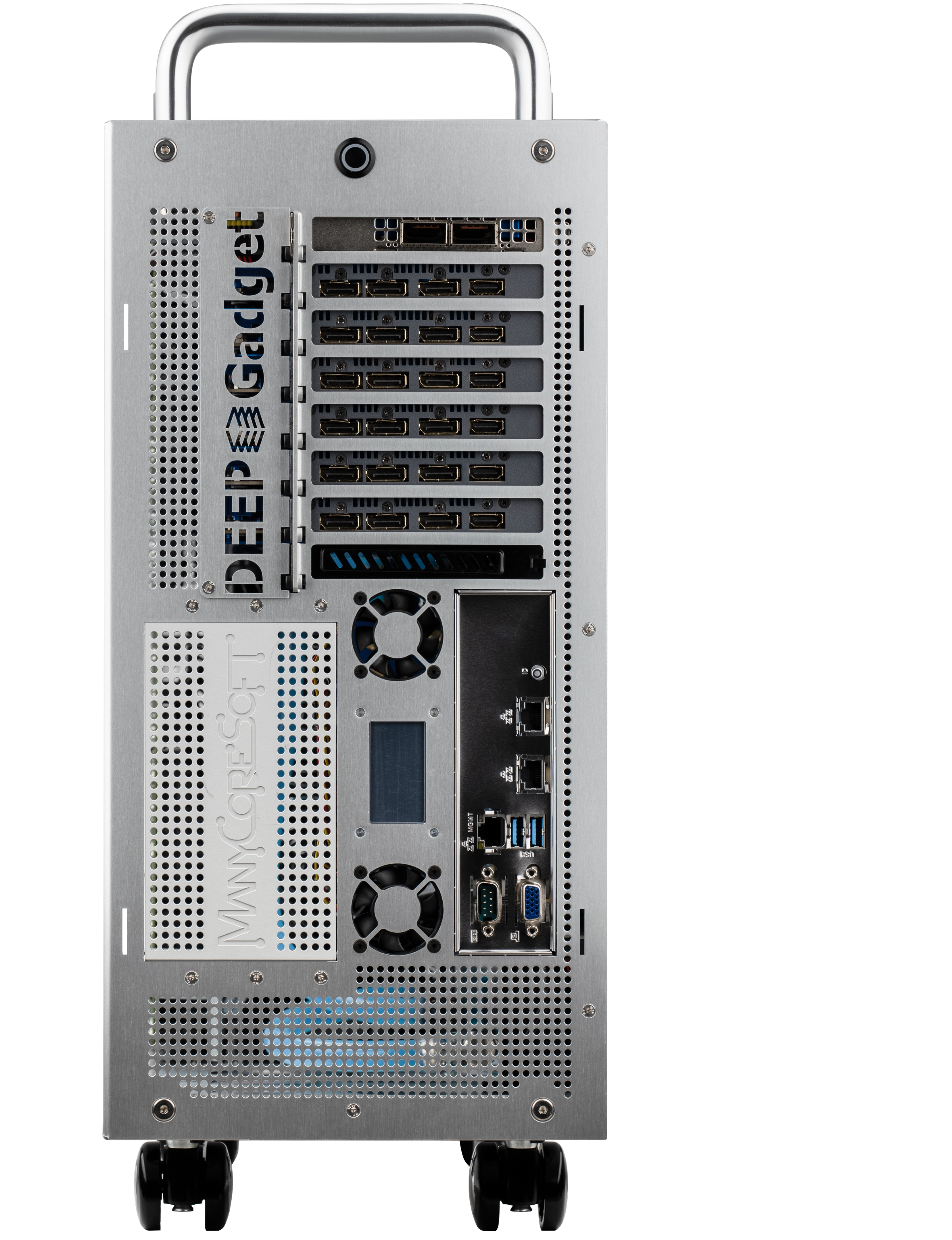

      DESIGN

      New Cooling. Even Newer Design. dg5W isn't just more powerful—it's completely re-engineered, inside and out. The new internal layout maximizes space efficiency, allowing for high-density GPU placement. Its sleek aluminum housing blends seamlessly into any workspace, making it perfect for desktop use. With the I/O panel now positioned at the front, hot air is directed away from critical components, preventing heat damage. Whether used as a tower or rack-mounted, dg5W is built to stay durable and reliable for the long run.

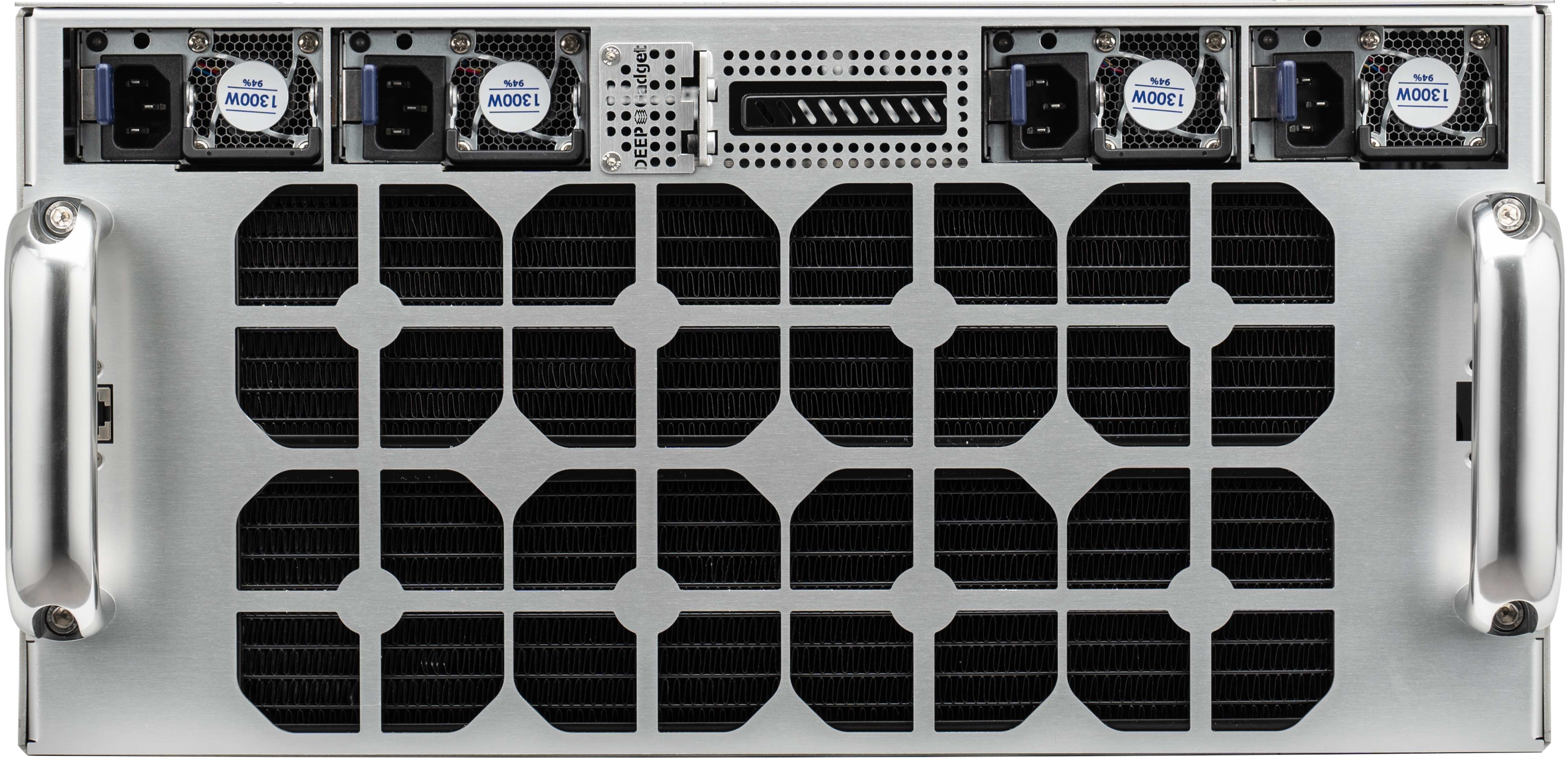

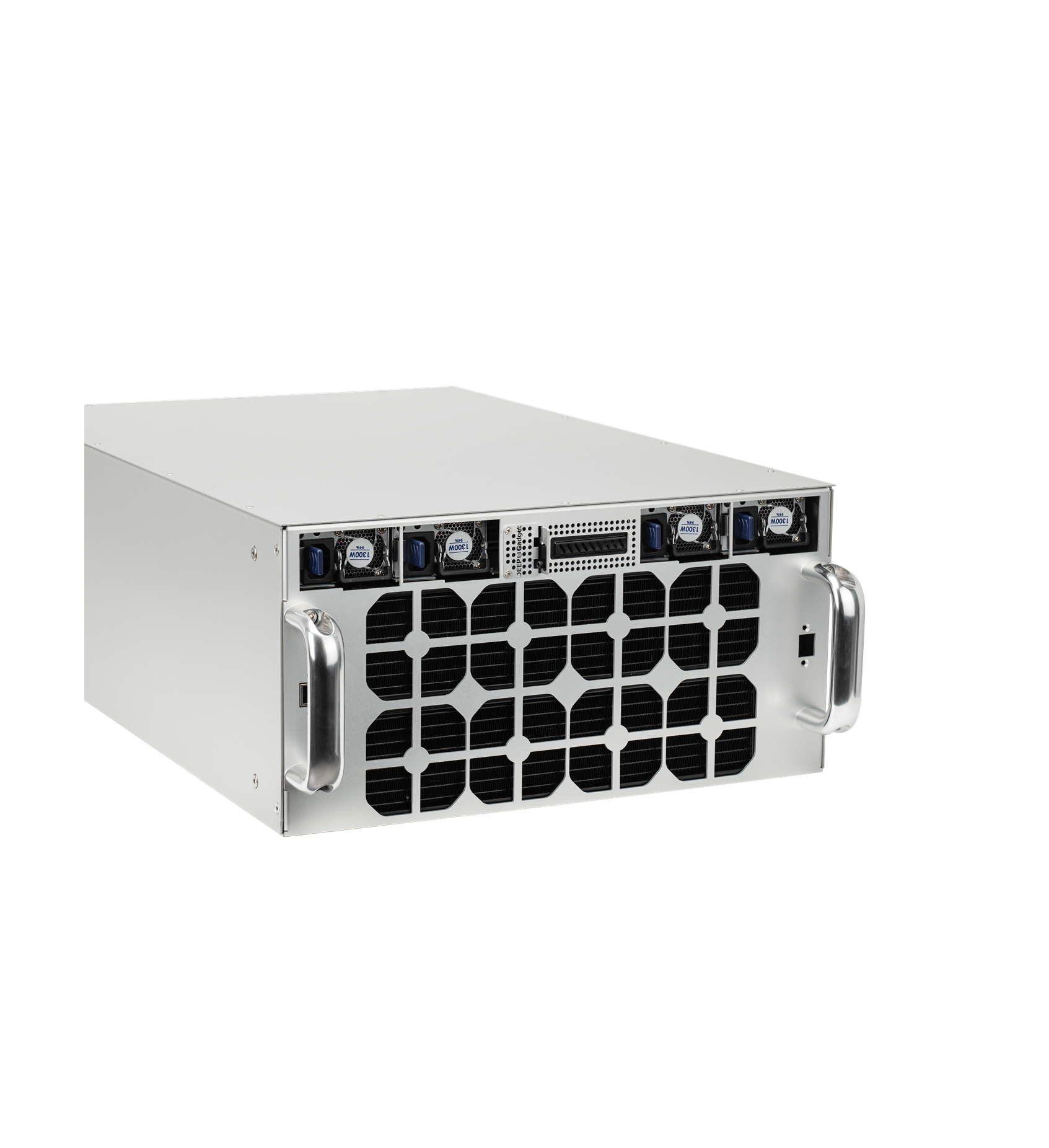

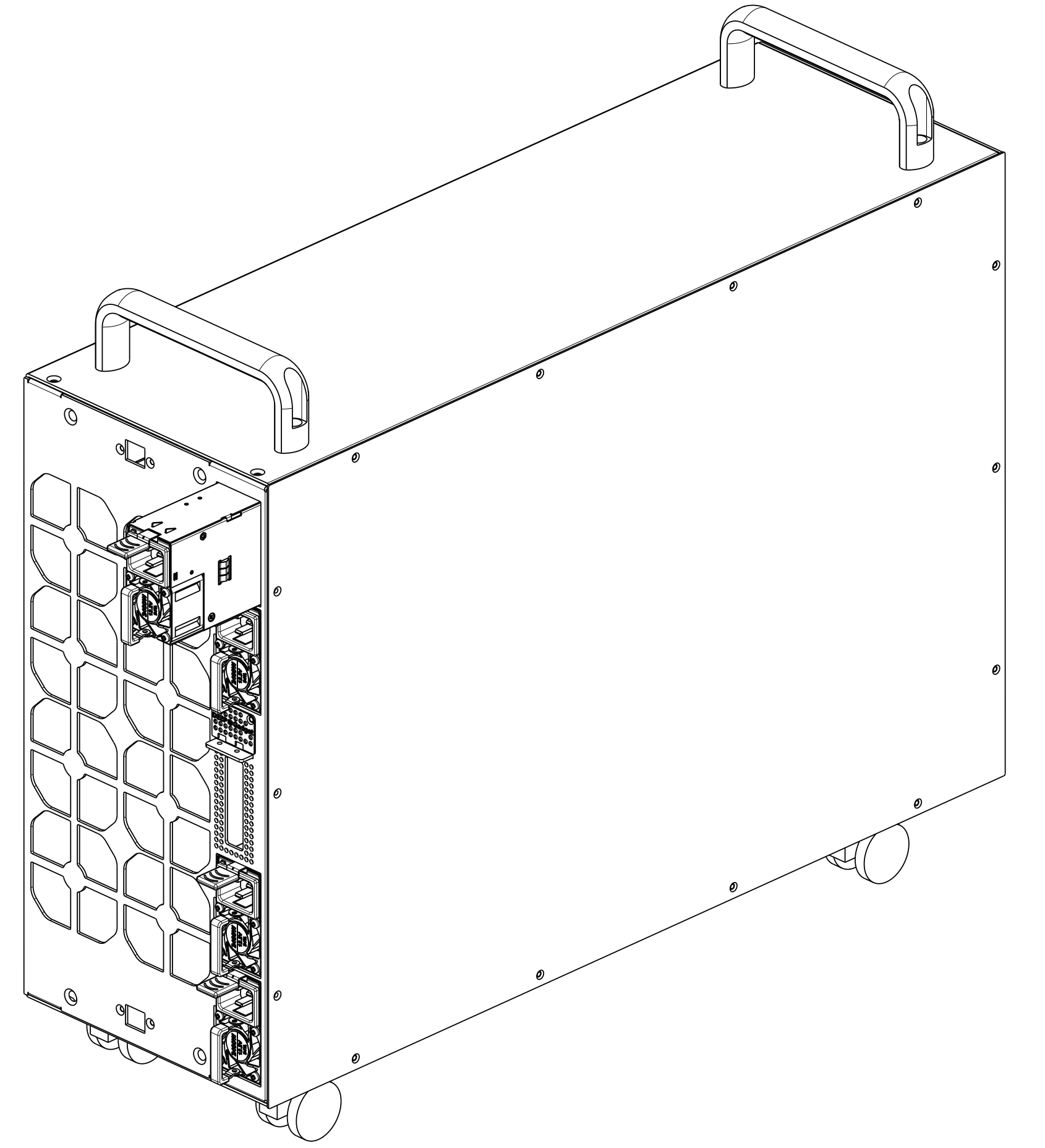

      Reliable power in any situation. Every dg5W configuration comes with four enterprise-grade PSUs, delivering over 1300W of power to ensure stable, reliable support for AI processors. With redundant hot-swappable power supplies, critical workloads and data remain secure, even during unexpected situations.
      스토리지스토리지

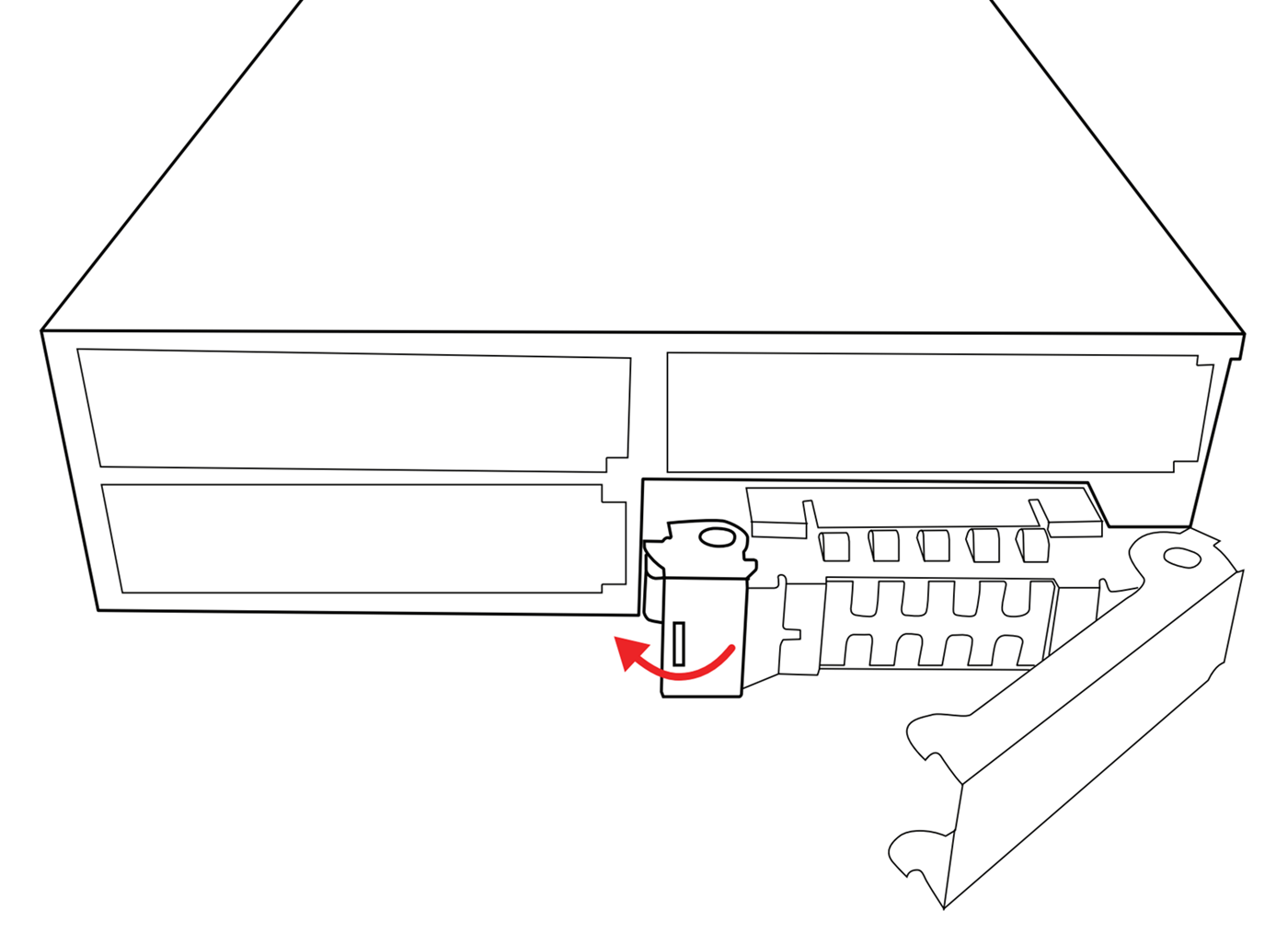

      Up to 8 Expansion Storage Drives. Expand beyond the NVMe M.2 main storage with up to eight 2.5" SSDs—delivering a solid 64TB of additional capacity. Hot-swappable bays let you upgrade or replace drives without interruption, while RAID configurations keep your data secure.

      Instant deep learning.
      Preloaded for AI. Ready to train from day one.

      deep gadget comes preloaded with all the software needed for AI research and development—so you can start deep learning the moment you power it on. From the OS to the deep learning stack, everything is optimized by the deep gadget team. Designed for effortless compatibility, so you can stay focused on your research.


      OS

      • Ubuntu
        RHEL
        Rocky Linux
        Windows

      • Drivers

      • NVIDIA
        AMD
        Tenstorrent
        Infiniband/GbE

      • Runtime & Libraries

      • CUDA
        cuDNN
        NCCL
        cuBLAS
        TensorRT
        ROCM

      • Deep Learning Frameworks & Solutions

      • PyTorch
        TensorFlow
        DeepSpeed
        Ollama
        Horovod
        vLLM
        3rd Party Solutions

      • Development Tools

      • MPI
        Anaconda
        Docker

      • SPEC

      • noiseQuietness

        20 ~ 53dB (Full load)

      • sizeSize
        W x D x H

        445mm x 780mm x 225mm(5U)
        780mm(model 660mm + Handle 120mm)

      • cpuCPU

        AMD Threadripper Pro 7000WX Series Processors
        AMD EPYC 9005 Series Processors
        5th Generation Intel® Xeon® Scalable Processors

      • gpuGPU

        Up to 7 GPUs
        NVIDIA RTX 5090 / 4090D / 4080 SUPER / 4070Ti SUPER
        NVIDIA RTX A6000 / A5000
        NVIDIA RTX 4000Ada / 4500Ada / 5000Ada / 6000Ada
        NVIDIA L40S
        NVIDIA A100X / H100 NVL(NVL Bridge encluded) / H200 NVL(NVL Bridge encluded)
        Tenstorrent Wormhole n300s

      • ramMemory

        Up to 768GB
        DDR5 5600 ECC

      • hddHDD

        Up to 4TB main storage
        M.2 NVMe SSD

        Up to64TB sub-storage
        M.2 NVMe SSD / 2.5” SSD / 2.5” HDD

      • gpuPCIe

        7 PCIe 5.0 x16

      • softwareOS

        Windows, RHEL, Ubuntu, Rocky Linux

      • networkNetwork

        2 x 10GbE Base-T
        IPMI
        InfiniBand NDR / HDR / EDR Ethernet 200G / 100G
        NIC - Infiniband Card 100G / 200G Dual Port (Option)

      • asWarranty

        For 3 years

      • powerPower

        4 x 2,000W(8.0kW) 80 Plus Platinum

      • manualManual & Warranty
